Description

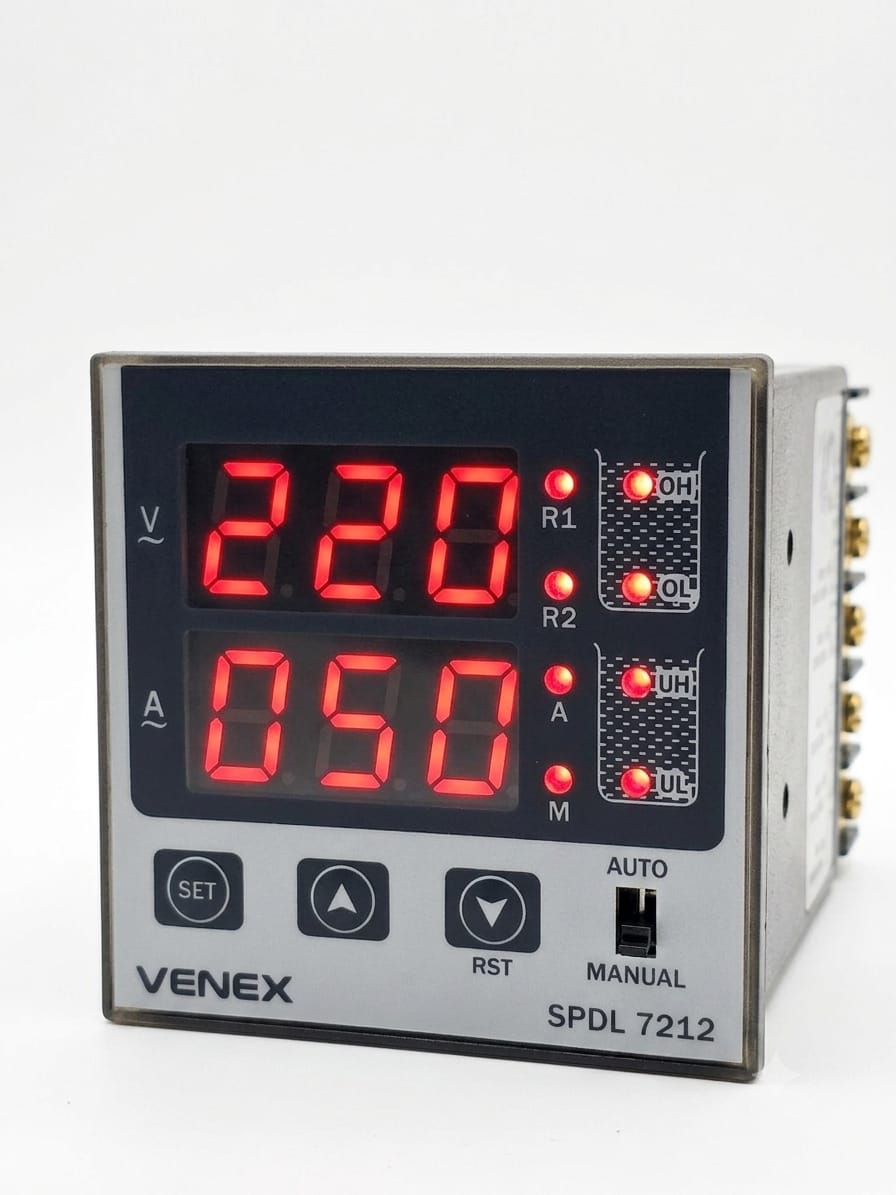

Over load protection, Dry run protection, High and low voltage protection, Auto manual function, With water level controller, 72×72 size, Cyclic timer mode, Water level indication, Suitable for all types of single phase submersible pump control panel, Running and starting capacitor timer, Microcontroller based technology Introducing the VENEX SPDL 72 Intelligent Meter — a smart and advanced control device specially designed for Single Phase Submersible Pump Control Panels. This intelligent device comes with a fully automatic water level control system, making it an ideal solution for panel manufacturers building single phase borewell and submersible pump panels. It is one of the most required and trusted devices in the pump panel manufacturing industry. The device is designed in a standard 72 × 72 mm panel mounting size and is built using advanced Microcontroller Based Technology for reliable and heavy-duty industrial performance. Display & Indications The SPDL 72 features dual digital displays: One display for Voltage Monitoring One display for Current (Ampere) Monitoring Separate LED indications are provided for: Overhead Tank Water Level Underground Tank Water Level Relay 1 Status Relay 2 Status Relay Outputs The device provides: Separate Relay Output for Running Capacitor Separate Relay Output for Starting Capacitor This arrangement ensures proper and efficient operation of the submersible pump motor. Operating Modes Auto Mode In Auto Mode, the device automatically controls: Water level monitoring Motor Start/Stop operation Tank filling process Manual Mode In Manual Mode, the pump can be operated manually using an external switch. Protection Features The SPDL 72 provides complete protection for the submersible pump and control panel with inbuilt protections such as: Overload Protection Dry Run Protection High Voltage Protection Low Voltage Protection Cyclic Timer Function These protections help improve motor life, reduce failures, and ensure safe operation. Key Features Fully Automatic Water Level Controller Easy Parameter Setting Heavy Duty Performance Reliable Microcontroller Based Design Compact 72×72 Standard Size User Friendly Operation Suitable for Single Phase Borewell & Submersible Pumps CONTROL PANEL. The VENEX SPDL 72 Intelligent Meter is a reliable and easy-to-install solution for modern submersible pump control panels. Manufactured by VENEX Electricals.
