VENEX ELECTRICALS WLC26 digital water level controller with over load and dry run

Over load protection,

Dry run protection,

High and low voltage protection,

Dual display for AMP and voltage,

DUAL tank operating,

6 SS sensors,

Auto manual function,

Water level indicator,

Power on indicator,

Heavy duty ABS body,

Microcontroller based technology

Based on your description and the image provided, here is a professional product overview and technical specification for the **VENEX WLC 26 Automatic Water Level Controller**.

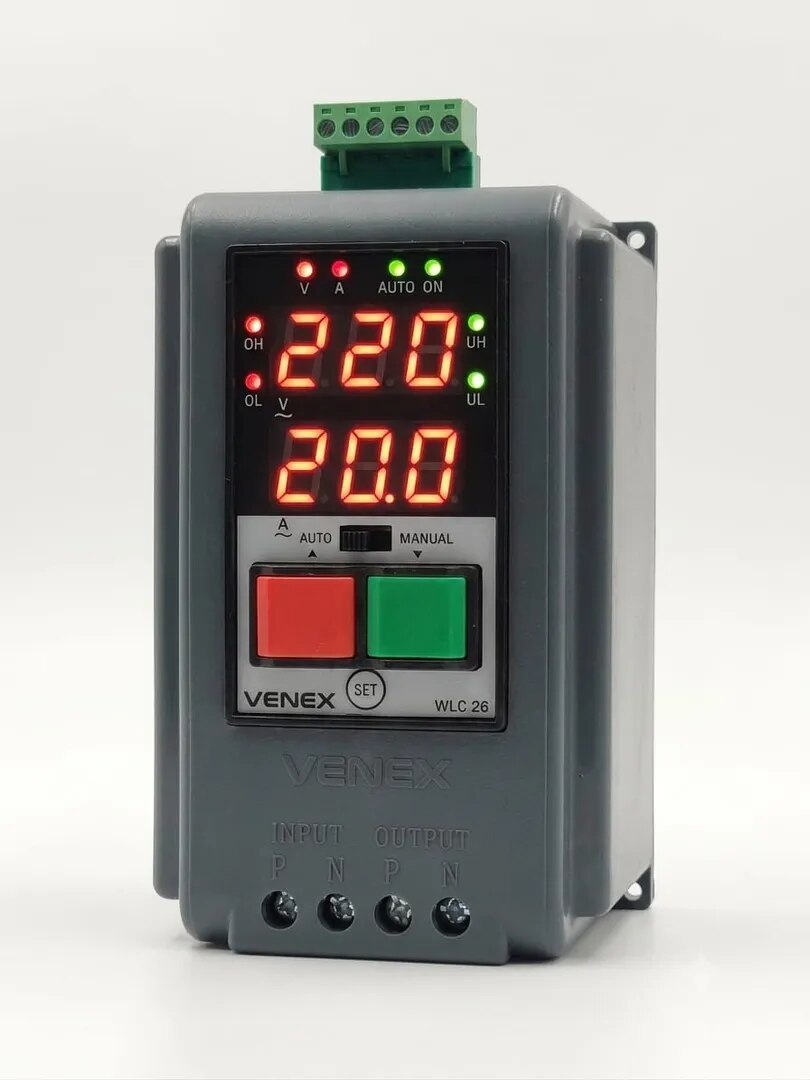

## **Product Overview: VENEX WLC 26

The **VENEX WLC26** is a high-performance, fully digital automatic water level controller designed for single-phase motor operations. It acts as an intelligent bridge between your water source and storage, ensuring your pump operates efficiently while staying protected from electrical and mechanical faults.

### **Key Features**

* **Dual Digital Display:** Real-time monitoring of both **Voltage** and **Current (Amperes)**.

* **Dual Tank Control:** Manages both the overhead tank (Upper) and the underground tank (Lower) simultaneously.

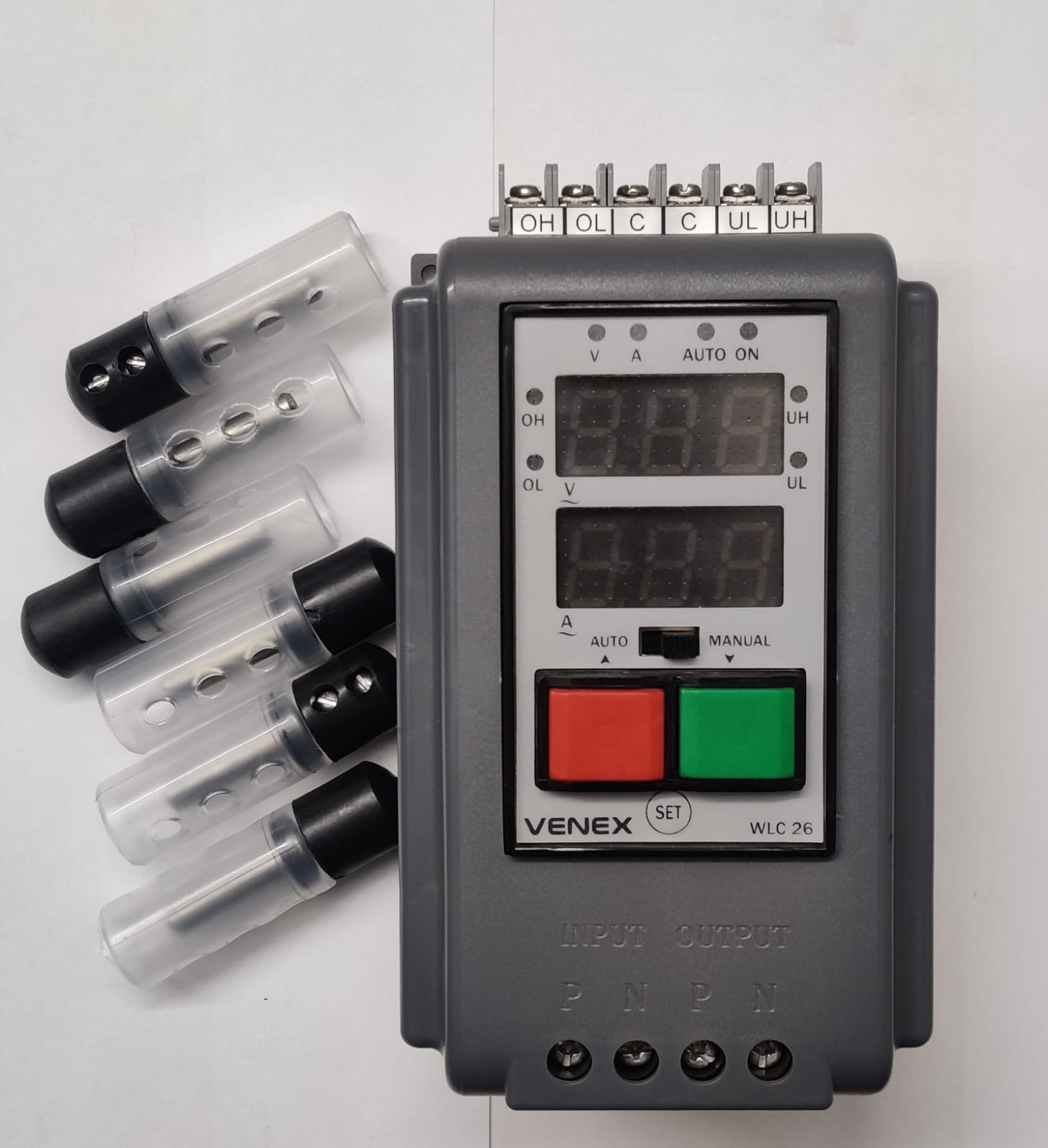

* **Sensor System:** Utilizes a 6-sensor system (3 for the upper tank and 3 for the lower tank) for precise level detection.

* **Auto/Manual Modes:** * **Auto:** Fully autonomous operation based on water levels.

* **Manual:** Allows the user to control the pump via physical switches.

* **Fault Indicators:** Dedicated LED indicators/display codes for faults like Overload, Dry Run, and Voltage fluctuations.

### **Technical Specifications**

| Feature | Specification |

|---|---|

| **Model** | WLC26 |

| **Phase** | Single Phase |

| **Motor Capacity** | Suitable for 1 HP to 3 HP motors |

| **Current Capacity** | 20 Amperes |

| **Input Display** | Digital Voltage & Ampere Meters |

| **Level Indications** | Visual indicators for Upper and Lower tank levels |

### **Advanced Protection Suite**

The WLC26 is equipped with a comprehensive protection system to increase the lifespan of your motor:

* **Overload Protection:** Shuts down the motor if it draws excessive current.

* **High/Low Voltage Protection:** Prevents motor burnout during power surges or brownouts.

* **Dry Run Protection:** Automatically turns off the pump if the source tank is empty or if no water is flowing.

* **Cyclic Timer:** Allows for scheduled operation.

* **Unbalance Protection:** Monitors electrical stability.

### **Installation Tip: Single Tank Usage**

If you wish to use the controller **only for the Upper Tank** (Overhead Tank) and bypass the Lower Tank (Underground) monitoring, follow these steps:

1. Locate the terminals for the lower tank sensors, typically labeled **UL (Underground Low)**, **UH (Underground HIGH)**, and **COM (Common)**.

2. Use a small jumper wire to **short/connect these three terminals together**.

3. Once shorted, the controller will “think” the lower tank is always full, allowing the overhead tank to operate automatically without interference.

### **Manufacturer**

This product is manufactured by **Venex Electricals**, known for robust industrial and domestic water management solutions.
