TPDSW 40

Over load protection,Dry run protection,Auto manual function,AMP and voltage meter,Phase Loss protection,Phase sequence protection,Unbalance protection,With water level controller 6 SS sensor,Fault induction on display,Power on off switch,dual tank operating,Microcontroller based technology,SMD based programming PCB,HEAVY DUTY input and output socket,Heavy duty ABS body,suport up 7.5 hp submersibale pump,

Here is a description for the **VENEX TPDSW 40**, specifically designed to highlight its advanced water management and protection features.

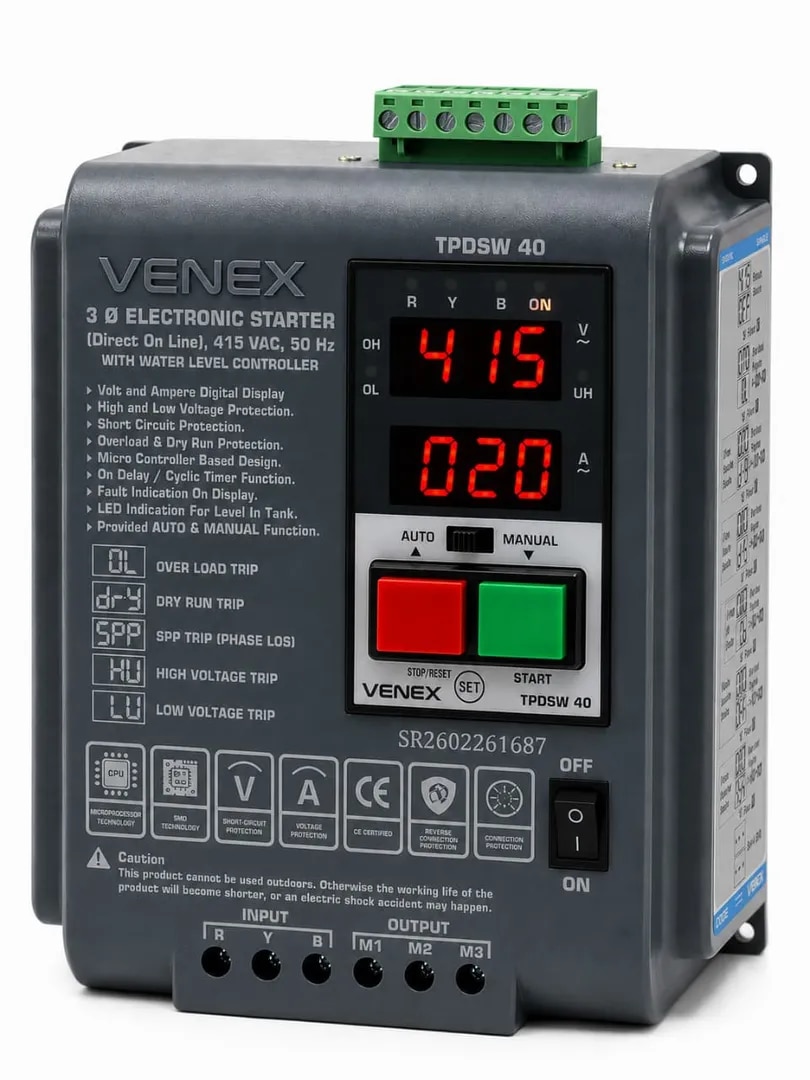

## **VENEX TPDSW 40: Fully Automatic Digital Starter with Water Level Controller**

The **TPDSW 40** is a high-performance 3-Phase Direct-On-Line (DOL) starter, uniquely integrated with an advanced **Water Level Controller**. Engineered for motors up to **7.5 HP** with a **20 Ampere** capacity, this unit offers a “set-and-forget” solution for sophisticated water management and total motor safety.

### **Dual Tank Water Management**

* **6-Sensor Support:** Operates seamlessly across two tanks—three sensors for the **Underground Tank and three for the **Overhead Tank .

* **Intelligent Logic:** Automatically manages water levels to ensure the pump never runs when the source is empty or when the destination is full.

* **Bypass Flexibility:** If an underground tank is not in use, simply short the **UL (Low)**, **UH (High)**, and **C (Common)** terminals to bypass the lower sensors and operate using only the overhead tank.

### **Advanced Monitoring & Display**

* **Digital Interface:** Clear, real-time digital display for both **Voltage (V)** and **Amperes (A)**.

* **Fault Diagnostics:** All error codes and trip statuses are indicated directly on the digital display for easy troubleshooting.

* **Visual Indicators:** Dedicated LED indicators for Phase Status (**R-Y-B**) and Motor Operation.

### **Comprehensive Protection Suite**

* **Voltage & Current Safety:** High/Low Voltage Protection and Overload Protection.

* **Dry-Run Features:** Prevents pump damage with built-in Dry-Run Protection and an adjustable **Dry-Run Reset Timer**.

* **Phase Intelligence:** Includes Phase Loss (SPP), Phase Sequence, and Voltage/Ampere Unbalance Protection.

* **Automation:** Integrated **Auto-Switch Timing** and Manual/Auto mode toggle for versatile control.

### **Versatile Applications**

The TPDSW 40 is the ideal choice for environments requiring automated water level maintenance:

* **Industrial:** Large-scale water management and cooling systems.

* **Residential:** Multi-story Apartments and Domestic households.

* **Commercial:** Shopping complexes, Hotels, and Hospitals.

* **Agriculture:** Automated irrigation and storage tank management.

**Manufactured By:**

**VENEX ELECTRICALS**

Ahmedabad, Gujarat, India.

> **Reliable. Efficient. Modern.** The TPDSW 40 is built to safeguard your motor while optimizing your water resources through precision automation.
