TPDS 40

Product Details:

With over load protection

dry run protection

High and low voltage protection

Phase loss protection

Phase siquance protection

Auto manual function

1 year warranty

agriculture motor up to 7.5HP,

Features:

Digital Display For Volt/amp Indictor.

Micro Controller Based Technology.

Ampere Protection 1. 0amp~25. 0amp.

Voltage Protection 250vac~490v Ac.

phase loss protection

phase siquance protection

output phase loss protection CSP

inbuit auto switch

cyclic timer also available

triger timer optional

folt indication on display

Electronic Start/stop

p Push Button Facility.

Stable Performance And Easy Mounting.

Industrial Level Of Emc Test And Reliability.

Specifications:

Supply : R, Y, B, 3 Phase (L-L) ( 10 VAC ~ 650 VAC ).

Output : 3 Phase Output (To Motor).

Voltage : Over Voltage, Under Voltage.

Ampere Spp : Over Current, Under Current.

Operating Temp : Phase Loss, Phase Sequence,

Relative Humidity : 0°c ~ 55°c,

Enclosure Material : Up To 95% Rh Non

Certainly! Here is a professional description of the **VENEX TPDS 40** Fully Automatic Digital Starter in English, highlighting its technical specifications and versatile applications.

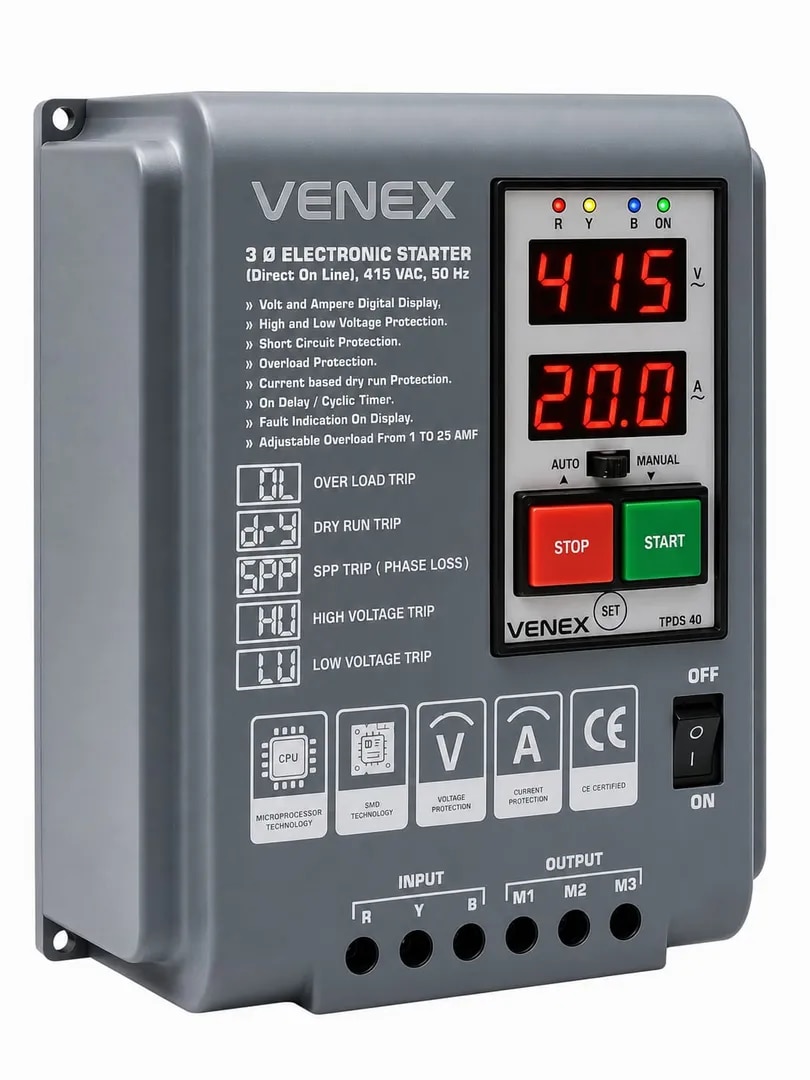

## **VENEX TPDS 40: Fully Automatic Digital DOL Starter**

The **TPDS 40** is a state-of-the-art, fully automatic Digital Direct-On-Line (DOL) starter designed to provide comprehensive protection and intelligent control for 3-phase motors. Built with high-grade ABS material, it combines durability with advanced microprocessor technology.

### **Key Technical Features**

* **Digital Monitoring:** Equipped with high-visibility digital displays for real-time **Voltage (V)** and **Ampere (A)** monitoring.

* **Visual Indicators:** Features dedicated LED indicators for Phase sequence (**R-Y-B**) and Motor Status (**ON/OFF/Trip**).

* **Advanced Timer Modes:**

* **Cyclic Timer:** Automates ON/OFF cycles.

* **On-Delay & Off-Delay Timers:** Protects the motor from frequent power fluctuations and manages operational delays.

* **Comprehensive Motor Protection:**

* **Overload & High Voltage Protection:** Prevents motor burnout due to excess current or power surges.

* **Dry-Run Protection: detect water absence to prevent pump damage.

* **Phase Protections:** Includes Phase Loss (Single Phasing Preventer), Phase Sequence, and Phase Unbalance protection.

* **Robust Build:** Housed in a heavy-duty, fully **ABS body** with a capacity of up to **20 Amperes**.

### **Wide Range of Applications**

The TPDS 40 is a versatile solution suitable for various sectors:

| Sector | Usage |

|---|---|

| **Agriculture & Irrigation** | Ideal for submersible pumps and farm motors. |

| **Industrial Machinery** | Protects heavy-duty 3-phase manufacturing equipment. |

| **Construction Sites** | Used for concrete mixers, cranes, and site machinery. |

| **Commercial Spaces** | Best for Hotels, Restaurants, and High-rise Apartments (Water management). |

| **Domestic** | Any household equipment requiring a stable 3-phase connection. |

> **Summary:** The VENEX TPDS 40 is a “fit and forget” solution that ensures your motor stays safe while offering modern automation features for peace of mind.

VENEX ELECTRICALS AHMEDABAD GUJARAT
