SPDL 7212

Over load protection,

Dry run protection,

High and low voltage protection,

Auto manual function,

With water level controller,

72×72 size,

Cyclic timer mode,

Water level indication,

Suitable for all types of single phase submersible pump control panel,

Running and starting capacitor timer,

Microcontroller based technology

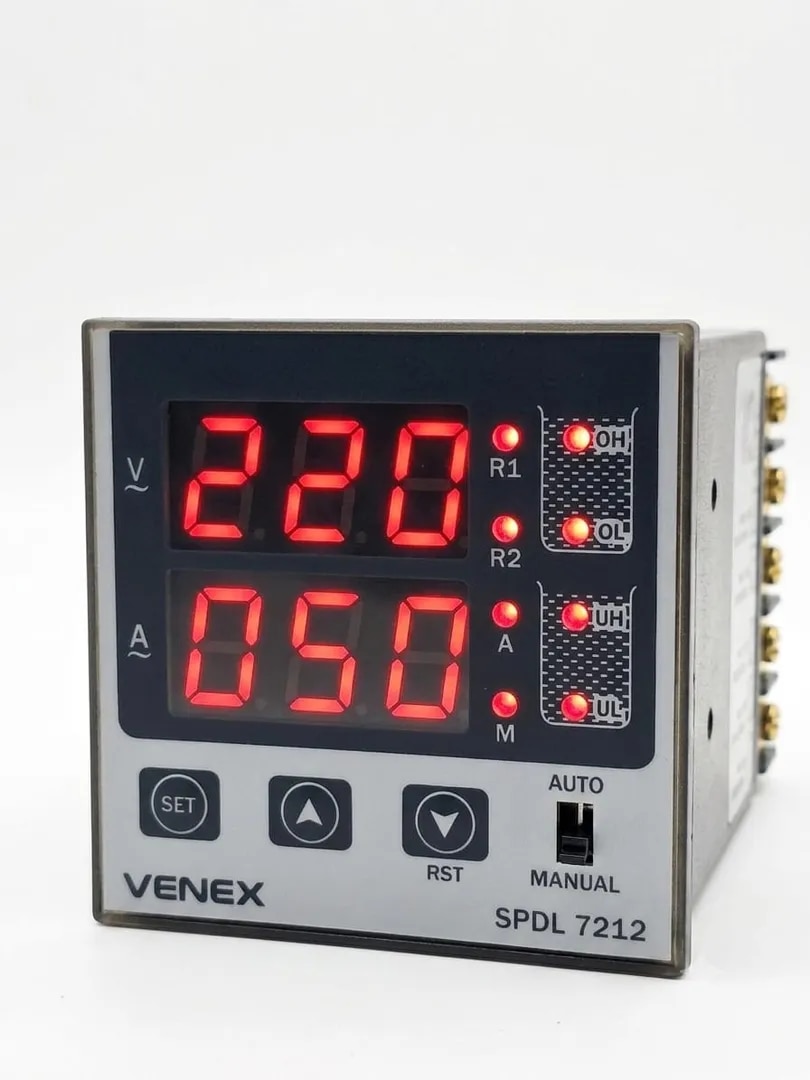

Introducing the VENEX SPDL 72 Intelligent Meter — a smart and advanced control device specially designed for Single Phase Submersible Pump Control Panels.

This intelligent device comes with a fully automatic water level control system, making it an ideal solution for panel manufacturers building single phase borewell and submersible pump panels. It is one of the most required and trusted devices in the pump panel manufacturing industry.

The device is designed in a standard 72 × 72 mm panel mounting size and is built using advanced Microcontroller Based Technology for reliable and heavy-duty industrial performance.

Display & Indications

The SPDL 72 features dual digital displays:

One display for Voltage Monitoring

One display for Current (Ampere) Monitoring

Separate LED indications are provided for:

Overhead Tank Water Level

Underground Tank Water Level

Relay 1 Status

Relay 2 Status

Relay Outputs

The device provides:

Separate Relay Output for Running Capacitor

Separate Relay Output for Starting Capacitor

This arrangement ensures proper and efficient operation of the submersible pump motor.

Operating Modes

Auto Mode

In Auto Mode, the device automatically controls:

Water level monitoring

Motor Start/Stop operation

Tank filling process

Manual Mode

In Manual Mode, the pump can be operated manually using an external switch.

Protection Features

The SPDL 72 provides complete protection for the submersible pump and control panel with inbuilt protections such as:

Overload Protection

Dry Run Protection

High Voltage Protection

Low Voltage Protection

Cyclic Timer Function

These protections help improve motor life, reduce failures, and ensure safe operation.

Key Features

Fully Automatic Water Level Controller

Easy Parameter Setting

Heavy Duty Performance

Reliable Microcontroller Based Design

Compact 72×72 Standard Size

User Friendly Operation

Suitable for Single Phase Borewell & Submersible Pumps CONTROL PANEL.

The VENEX SPDL 72 Intelligent Meter is a reliable and easy-to-install solution for modern submersible pump control panels.

Manufactured by VENEX Electricals.
