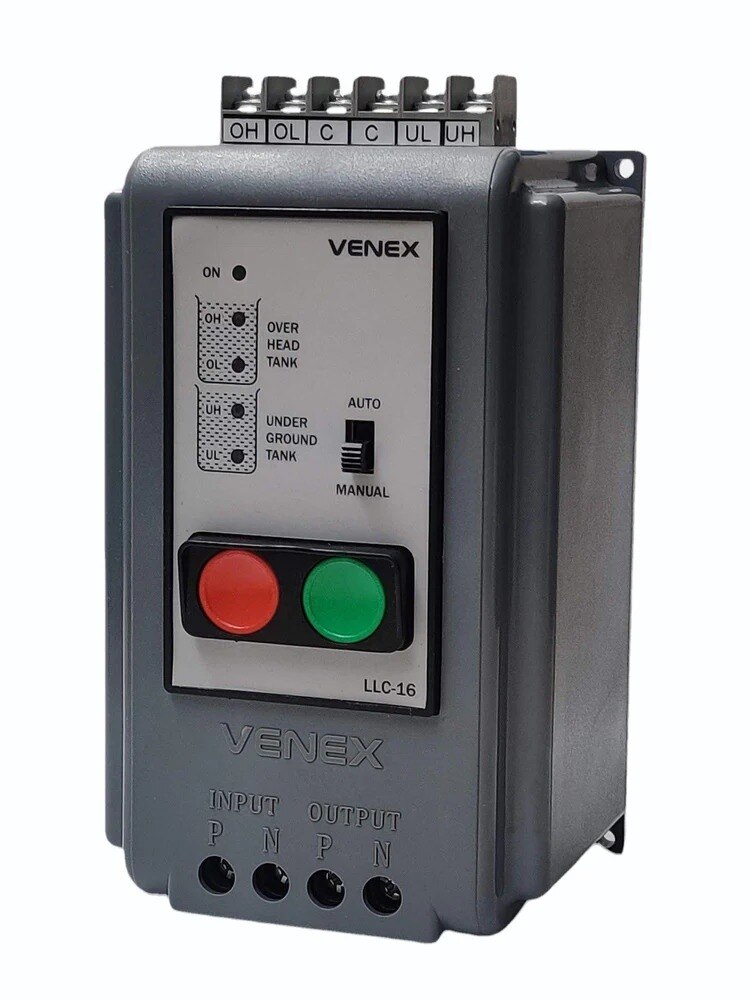

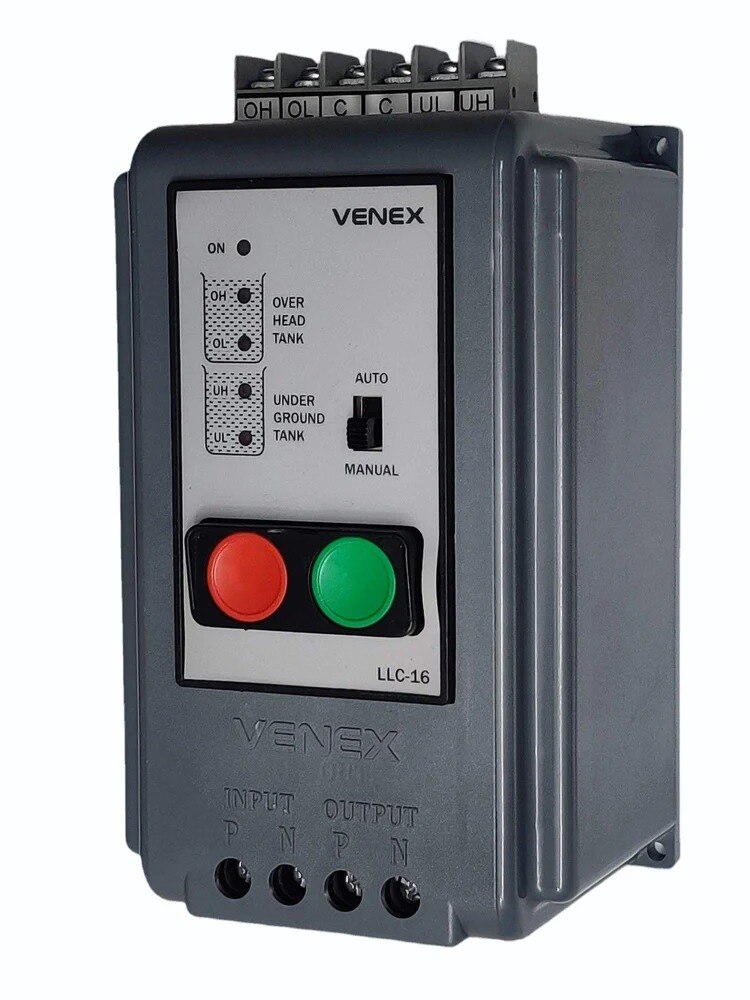

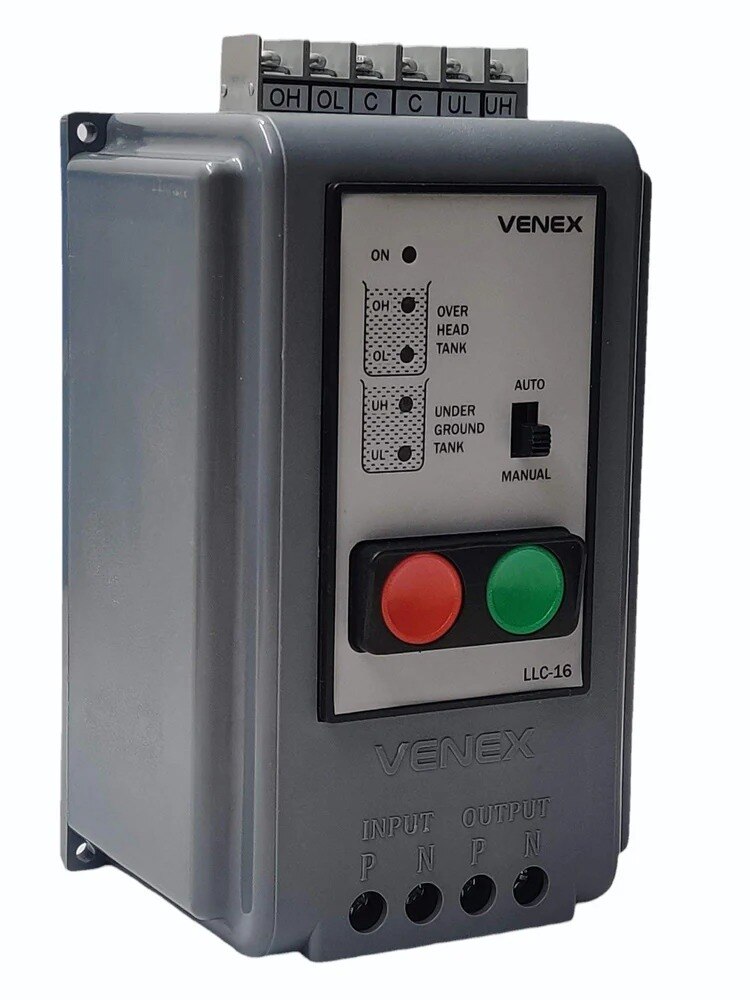

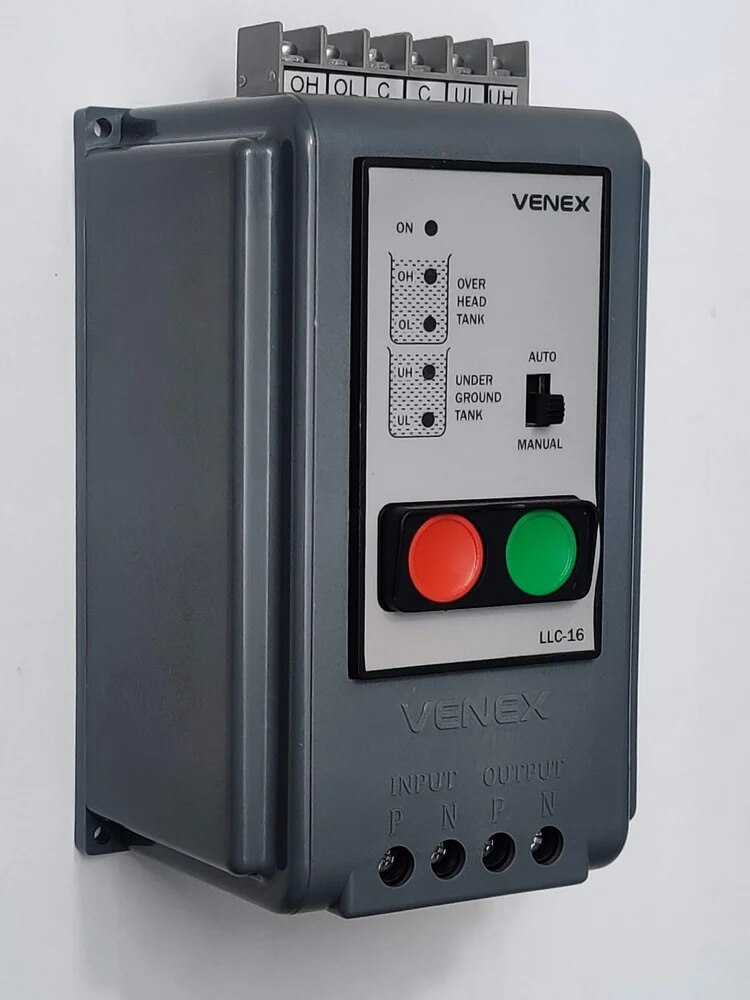

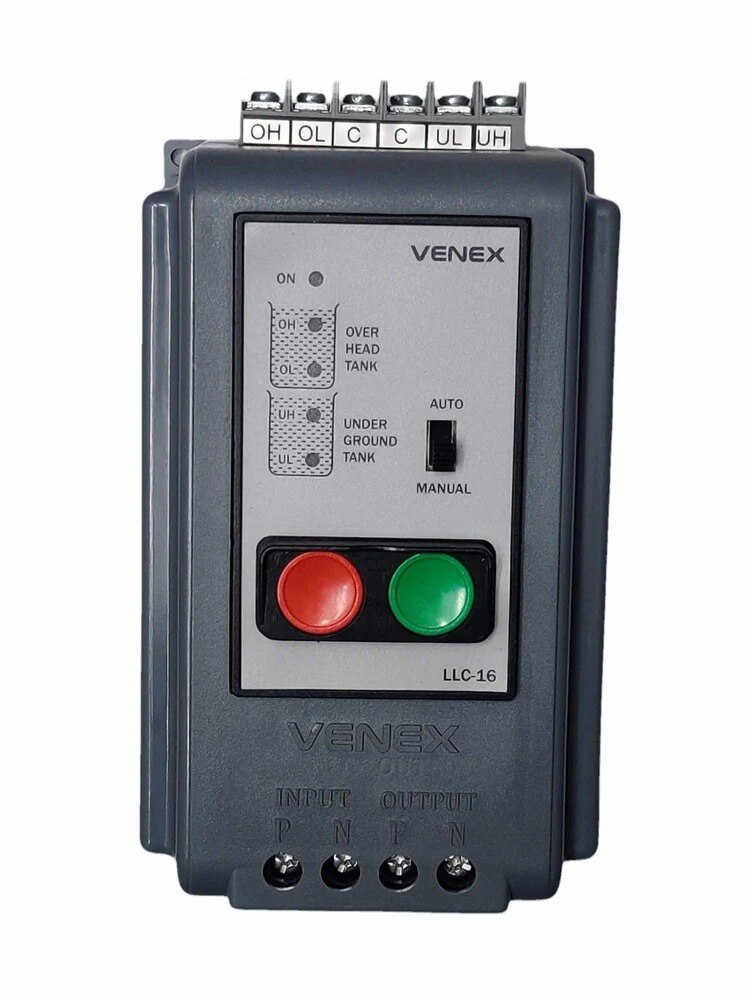

LLC 16 VENEX single phase fully automatic water level controller

LLC 16

LLC 16Dual tank operating,

Support up to 15 AMP,

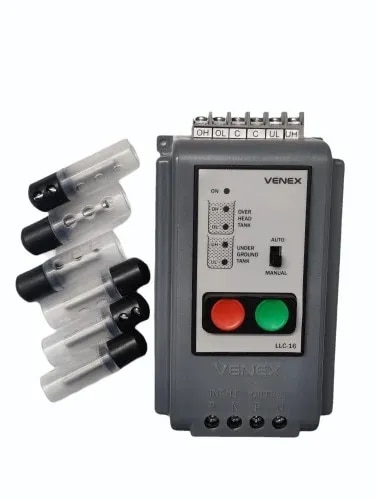

With 6 SS sensor,

Water level indicator,

Suitable for 1 to 3 HP motor,

Auto manual function,

Microcontroller based technology,

P/N input and output.

## **VENEX LLC-16: Dual Tank Fully Automatic Water Level Controller**

Upgrade your home with the advanced **VENEX LLC-16**, a smart solution designed to automate your water management and protect your motor.

### **Key Features:**

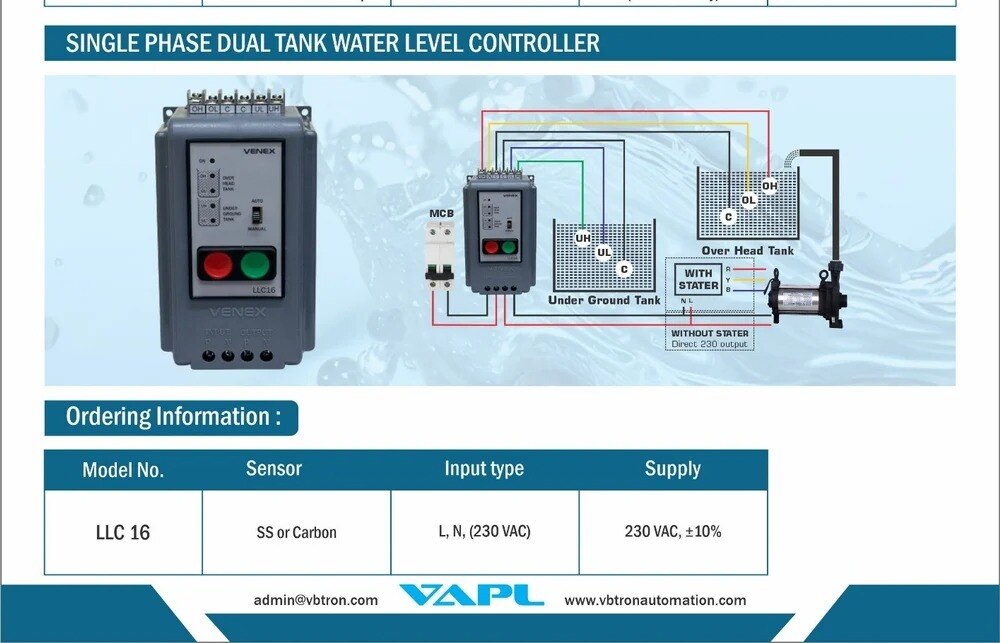

* **Dual Tank Control:** Simultaneously manages both the Overhead (OH) tank and the Underground (UG) tank.

* **Dry-Run Protection:** Automatically shuts off the motor if the underground tank is empty, preventing pump damage.

* **Auto/Manual Function:** Flexibility to switch between fully automatic operation or manual control using the physical Start/Stop buttons.

* **LED Indicators:** High-visibility indicators for Power status and specific water levels (High/Low) for both tanks.

* **High Durability:** Shock-proof plastic body with premium Stainless Steel (SS) sensors for long-lasting performance.

### ** Pro-Tip for Single Tank Users:**

If you do not have an underground tank and wish to use the controller **only for the overhead tank**, follow this simple wiring bypass:

* **Short the Lower Sensors:** Connect the **UL (Underground Low)**, **UH (Underground High)**, and **C (Common)** terminals together using a small jumper wire.

* **Result:** This bypasses the lower tank requirement, allowing the controller to operate perfectly using only the overhead tank sensors.

### **Technical Specifications:**

* **Model:** LLC-16

* **Phase:** Single Phase

* **Sensors:** Stainless Steel (Included)

* **Body:** High-Grade Plastic

### ** Contact & Manufacturing Details:**

**VENEX ELECTRICALS**

Ahmedabad, Gujarat, India

**Save Water, Save Electricity, and Protect your Motor with VENEX!**
