ELV 96 VENEX CONTROLLER for goods lift

ELV 96 VENEX CONTROLLER for goods lift Manufacturer

ELV 96 - ELEVATOR INTEGRATED CONTROLLER FOR GOODS ELEVATOR (G+5)

ELV 96 - SINGLE PHASE + GOODS LIFT ELEVATORS

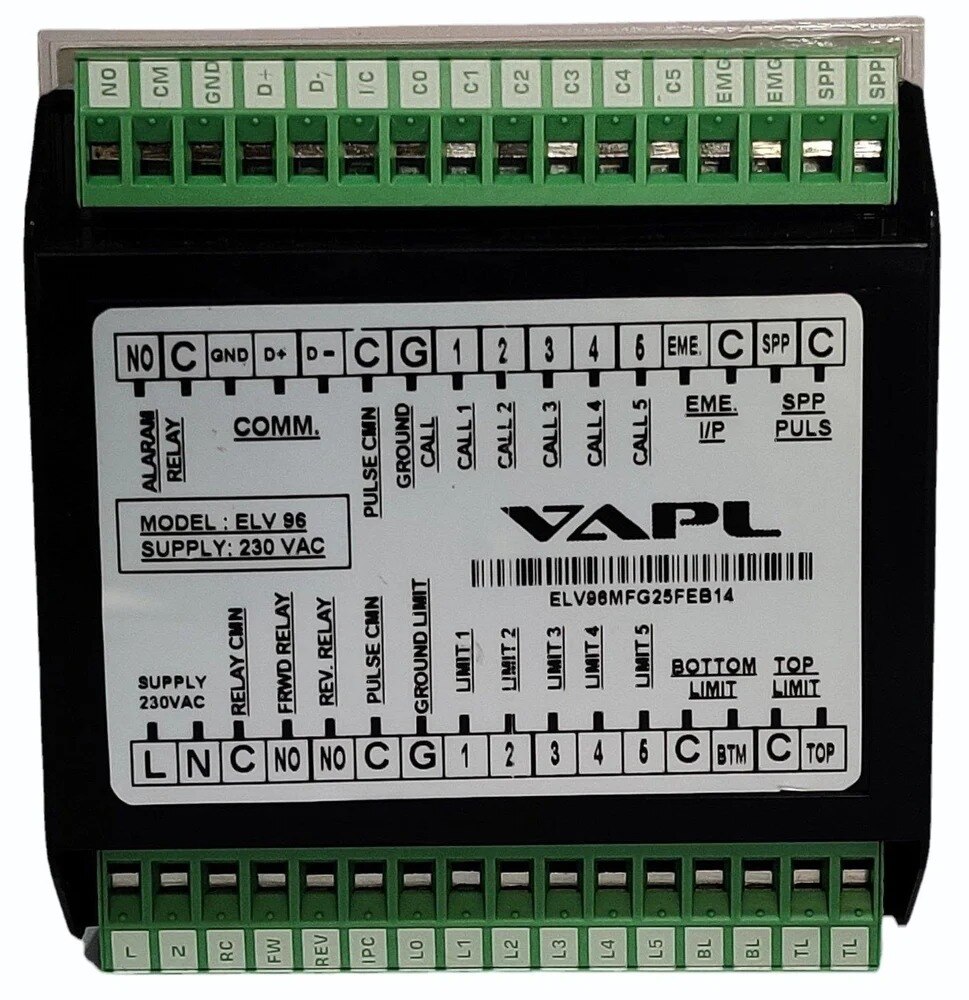

INPUT:- DI Input

INPUT: 5 INPUT FOR LIMIT SWITCH,

5 INPUT FOR CALL SWITCH, EMERGENCY STOP, SPP INPUT,

BOTTOM LIMIT, TOP LIMIT.

OUTPUT:- Relay

OUTPUT: 1CO + 1CO + 1CO Followed By Forward.

Revers & Alarm (7 AMP., 230 VAC (No - C - NC))

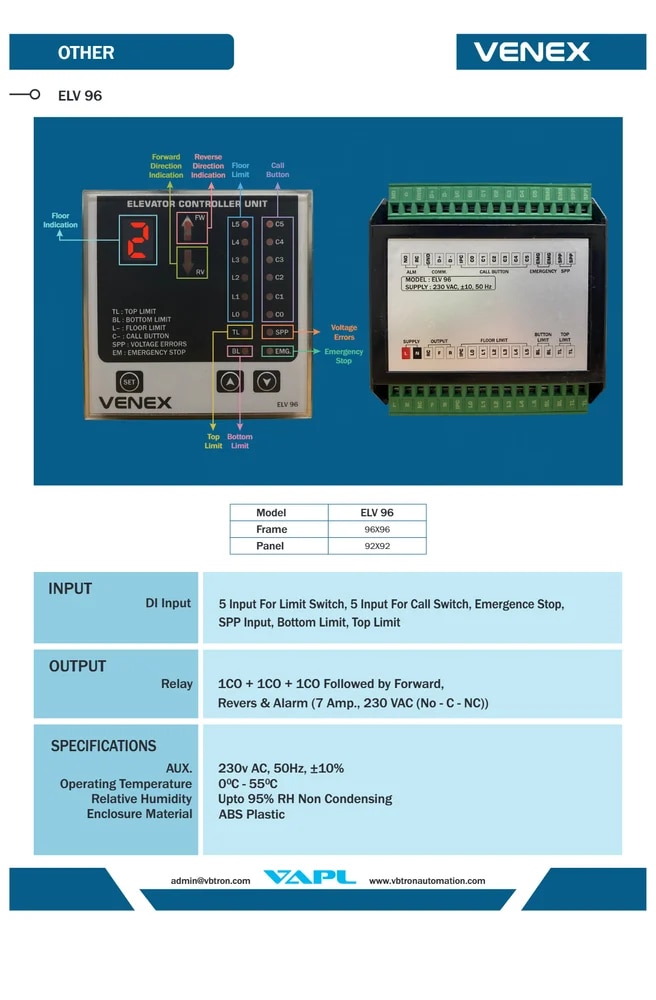

SPECIFICATIONS :-

AUX: 230V AC, 50H, ±10%

OPERATING TEMPERATURE: 0ºC - 55°C

RELATIVE HUMIDITY: UPTO 95% RH Non Condensing

ENCLOUSER MATERIAL: ABS Plastic
