ELR PANEL
Description

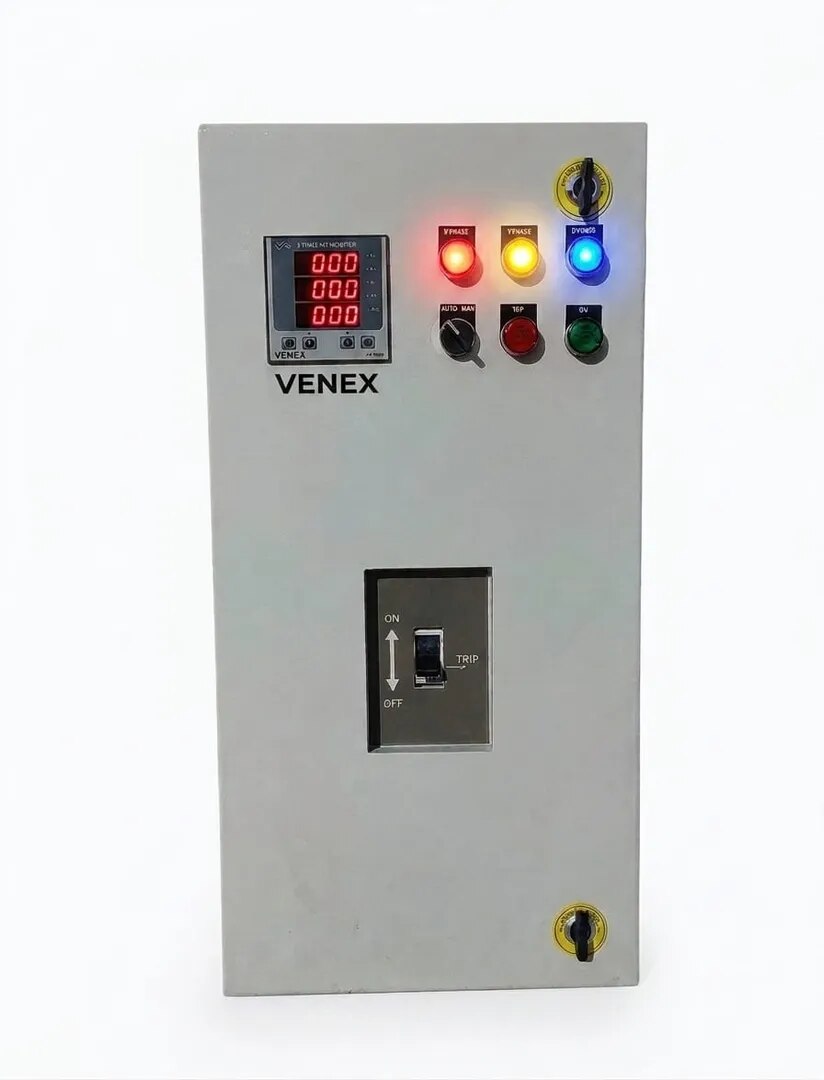

VENEX ELR Panel (Earth Leakage Relay Panel)
Product Description
The VENEX ELR Panel is designed to provide reliable protection against earth leakage faults, ensuring the safety of electrical equipment and personnel. It continuously monitors leakage current and automatically trips the connected breaker whenever the leakage current exceeds the preset value, preventing electrical hazards, equipment damage, and fire risks.
Key Features
Advanced Earth Leakage Protection
Fast & Accurate Fault Detection
Adjustable Leakage Current Setting
Adjustable Trip Time Delay
Digital Display for Easy Monitoring
High-Quality Industrial Components
Compact & Durable Powder-Coated Enclosure
Suitable for Industrial, Commercial & Residential Applications
Easy Installation & Maintenance
Long Service Life with Reliable Performance
Technical Specifications
Supply Voltage: 415V AC, 3 Phase, 50Hz
Operating Voltage: 230V/415V AC
Frequency: 50Hz
Leakage Current Setting: Adjustable (30mA to 30A depending on model)
Trip Time: Adjustable
Display: Digital LED Display
Protection Class: Earth Leakage Protection
Enclosure: Powder-Coated MS Cabinet
Mounting Type: Wall Mounted
Operating Temperature: -10°C to +55°C
Available Current Ratings
40 Amp
63 Amp
100 Amp
125 Amp
160 Amp
200 Amp
250 Amp
315 Amp
400 Amp
630 Amp
Applications
Industrial Machines
Pump Panels
Motor Control Panels
Commercial Buildings
Factories
Textile Industries
Food Processing Units
Pharmaceutical Industries
Agricultural Applications
Electrical Distribution Systems
Benefits
Prevents electric shock hazards
Protects equipment from earth leakage faults
Reduces maintenance costs
Enhances electrical safety
Improves system reliability
Easy operation with long-lasting performance
